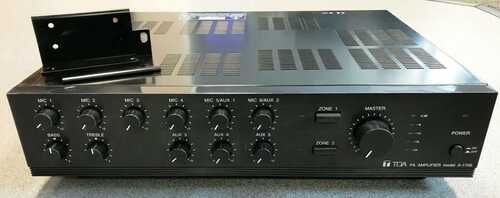

TOA A-1706 2-Zone Mixer Power Amplifier, 60W 100V Line (UK version) – Rack Mountable
All inputs and outputs fully tested, working well.
Power Source240 V AC, 50/60 Hz
Rated Output60 W
Power/Current Consumption150 W (rated output), 60 W (EN60065), under 150 mA (when power switch is OFF)
Frequency Response50 – 20,000 Hz (3 dB)
DistortionUnder 2% at 1 kHz, rated power
InputMIC 1 – 6: -60 dB*, 600 , electronically-balanced, combined type of XLR-3-31 equivalent and phone jackAUX 1 – 2: -20 dB*, 600 , electronically-balanced, combined type of XLR-3-31 equivalent and phone jack (Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable)AUX 3 – 4: -20 dB*, 10 k, unbalanced, RCA pin jackAUX 5: -20 dB*, 10 k, unbalanced, combined type of XLR-3-31 equivalent and phone jackPWR AMP IN: 0 dB*, 600 , unbalanced, RCA pin jack(An equalizer or other signal processor connectable between LINE OUT and PWR AMP IN terminals)
OutputREC: 0 dB*, 600 , unbalanced, RCA pin jackLINE: 0 dB*, 600 , unbalanced, RCA pin jackSPEAKER SELECTOR: 2 zone, high impedance (100 V line/167 ), individual selector key, M4 screw terminalDIRECT SPEAKER OUT: High impedance (100 V line/167 ), M4 screw terminal. Low impedance (4 – 16 ), M4 screw terminal (Both Low and High impedance terminals cannot be used at the same time.)
Phantom PowerON or OFF for each MIC1 – 6 with switch setting
S/N Ratio(Band Pass : 20 – 20,000 Hz)Over 100 dB (Master volume: min)Over 76 dB (Master volume: max)Over 60 dB (MIC 1 – MIC 4)Over 53 dB (MIC 5, MIC 6)Over 76 dB (AUX 1 – AUX 5)
Tone Control
Bass: 10 dB at 100 Hz, Treble: 10 dB at 10 kHz
Control Input
REMOTE VOLUME: M3 screw terminal
POWER REMOTE: No-voltage make contact input, open voltage: 28 V DC (when the unit’s power is OFF), short-circuit: under 10 mA, M3 screw terminal
Indicator
5 point LED output level meter, Power indicator LED, Zone indicator LED
Operating Temperature
10 to +40
Finish
Panel: ABS resin, black, hair line
Case
Steel plate, black
Dimensions420 (W) 107.7 (H) 367 (D) mm
Distance between barriers on the screw terminalsM3 – 7mmM4 – 9mm
Free tracked shipping!
Please note that I use recycled packaging, and record serial numbers for the purposes of fraud prevention
